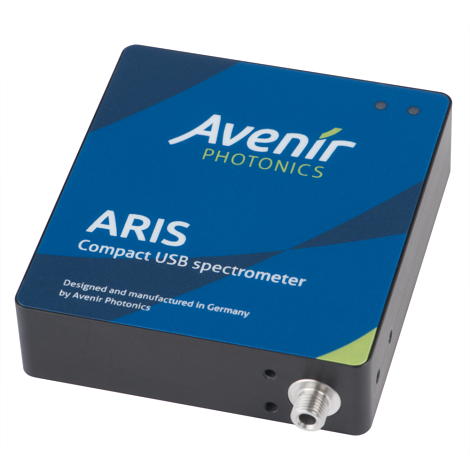

Compact USB spectrometer
.png)
ARIS
- 높은 휴대성과 industrial integration 이 강점
- 향상된 Stray light 감소
- 경제적인 가격
- 가격대비 최대 4배 높은 감도
- 컴팩트한 사이즈. 67.0 × 74.0 × 19.0 mm
제품정보
Wavelength ranges and resolutions
Configuration |
Wavelength range |
Resolution (FWHM) typ. max. |
|
Wide |
185 − 970 nm |
1.1 |
1.40 nm |
UV/VIS |
185 − 550 nm |
0.4 |
0.60 nm |
UV |
185 − 420 nm |
0.33 |
0.40 nm |
VIS |
350 − 840 nm |
0.65 |
0.80 nm |
VIS/NIR |
510 − 1020 nm |
0.8 |
1.00 nm |
Image Sensors
|
Toshiba TCD1304DG |
Hamamatsu S11639-01 |
Number of pixels |
3648 |
2048 |
Exposure time range |
3 μs − 35 min |
54 μs − 35 min |
Signal-to-Noise Ratio |
350 |
600 |
Dynamic Range |
1900:01:00 |
5000:01:00 |
Pixel readout speed |
1 MHz |
2 MHz |
UV sensitivity |
excellent |
good |
Suitable for |
moderate |
very good |
fast-changing signals |
|
|
Trigger jitter |
≤ 1 exposure time |
10 μs |
Optics
| Optical design | Symmetrical high-throughput Czerny-Turner |
| Focal length | 50 mm |
| Numerical aperture | 0.16 (equivalent area) |
| Stray light | < 0.08 % |
| Detector lens | Included |
| Order sorting filter | Included (if required) |
| Optical interface | SMA connector (other interfaces on request) |
Included accessories
- USB cable
- USB memory stick with software and documentation
- Quick start guide
- Calibration and test report
Optional accessories
- Larger entrance slits (user-replaceable)
- Fiber-optical patch cables
- Cosine corrector
- SMA collimator
- Direct-attach collimator
Custom option
- User-replaceable entrance slits
- Custom wavelength ranges and blaze wavelengths
- Different image sensors
- Additional optical filters
- Application-specific processing and evaluation
